Racetech Seat, Brackets & Harness Combo 1

  • $2,069.97
  • $1,749.99

  • Ex Tax: $1,521.73

Available Options


Back Mount Instruction 119 and 4100 series REV02-2022.pdf Download

Seat, Brackets and Harness Combo - You Save $319.

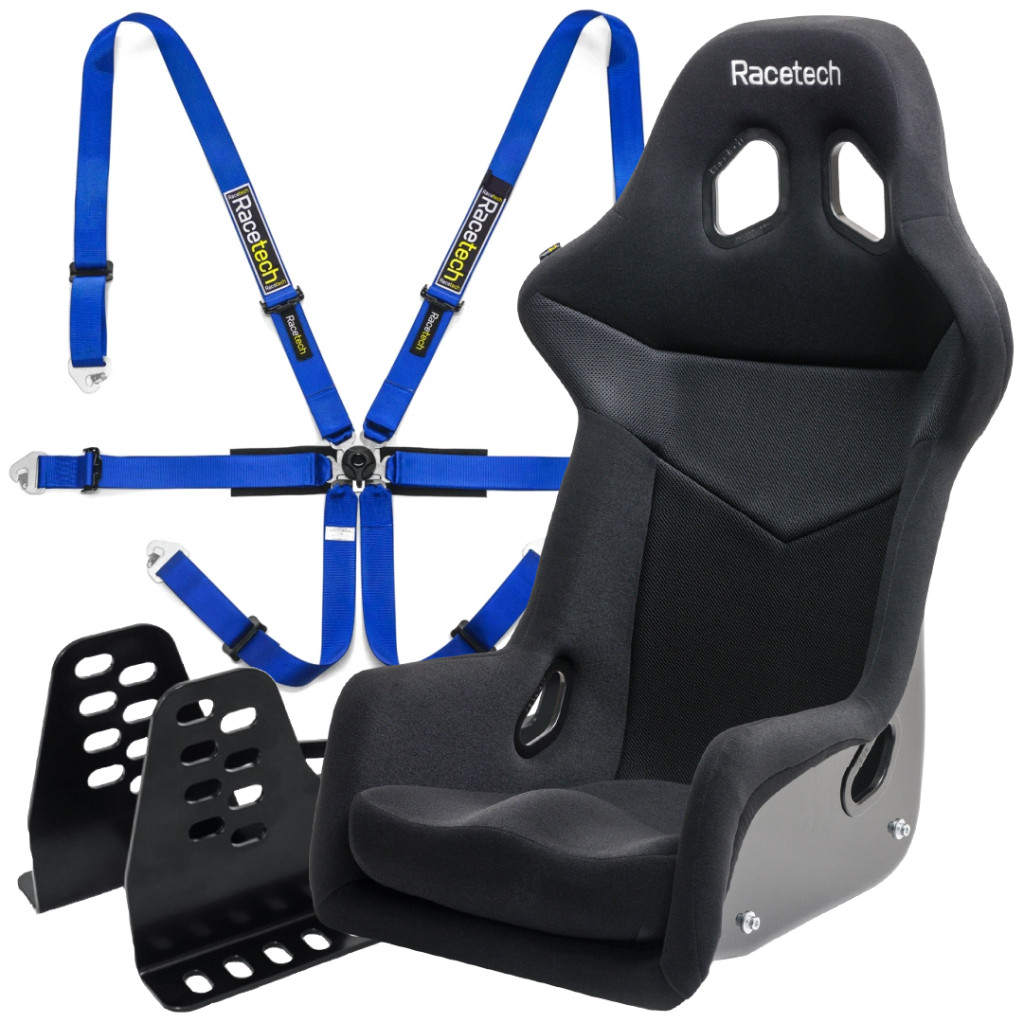

Grab a Racetech RT4100 series FIA-approved race seat, steel side mounting brackets and a Racetech FIA-approved Pro International 6-point harness in this great value package deal. Choose your preferred seat size and harness colour from the dropdown list above. For more detail, check out the seat and the harness.


The RT4100 is a standard-sized fibreglass race seat. We have focused on achieving a lightweight seat shell with optimised geometry, straddling that line between designing the seat to be wide enough in the shoulders to suit the athletic build, but narrow enough to fit in most cockpits. Our back-mounted technology has trickled down from the 119 and 129 Series, giving you the option of fixing the seat to the roll cage at shoulder level. Large harness guides and a removable moulded base cushion allow a range of drivers of varying heights to fit. Breathable Spacer fabric, parallel sides and pronounced thigh support round off the features of this accomplished motorsport seat.

For the taller driver, the RT4100T uses the WT shell, with additional high-density foam from the sides up to the shoulders. For the larger driver, the RT4100WT is 60mm taller and 40mm wider than the standard seat.

The 4100 Series seats use either Racetech RTB2009S (steel) or RTB1009M (aluminium) side mounting brackets.

Dimensions and Weights:

[[SEAT-TABLE]]

Images may differ from the actual product; embroidery on the product received may differ slightly from that shown. Contact us if you have any questions.

Application
Common Applications From clubsport to national-level circuit and rally
Stock Colour / Material
Gelcoat Gloss black
Seat Cover Black fire-retardant nylon fabric with Spacer mesh through the torso
Wear Patches N/A
Technical
Homologation FIA 8855-1999
Shell Construction Fibreglass
Shell Weight From 5.7kg
Bolt Torque (Zinc) 30Nm / 22 ft lb
Design
Sizes Standard
T - Tall
WT - Wide & Tall
Head Restraint N/A
HANS Compatible Yes
Harness Compatibility Up to 6-point harness
Large Harness Guides Yes
Air Ducting No
Back-mount Compatible Yes
