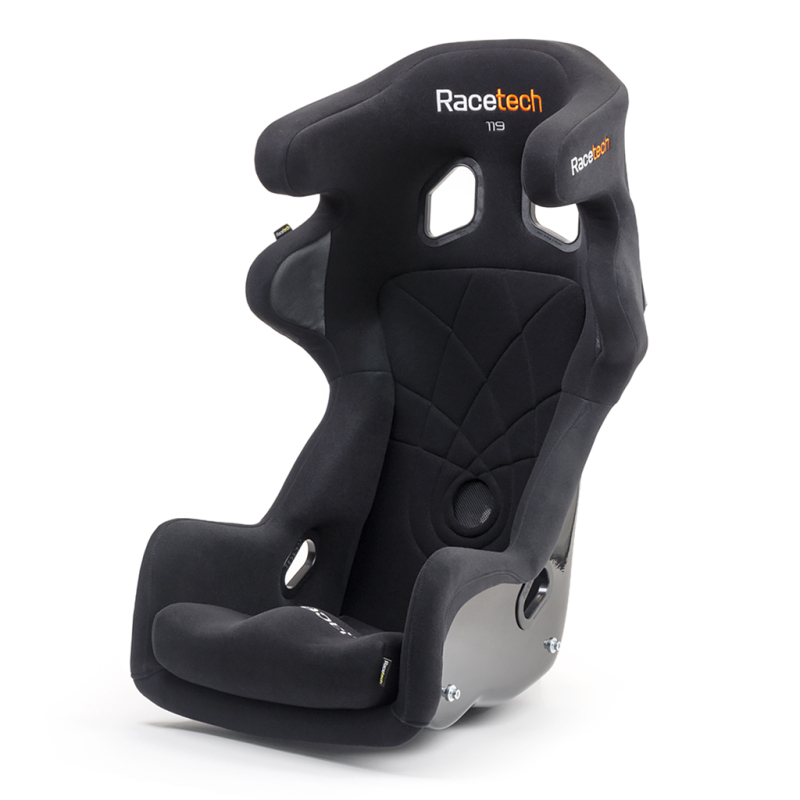

RT4119HRW Racing Seat
-1024x1024.jpg "Back cushion with ducting vent")
-1024x1024.jpg "RTB1009M side mount brackets")
- Brand: Racetech Manufacturing
- Product Code: RT4119HRW-111
- Availability: In Stock
-
$3,779.99
- Ex Tax: $3,286.95
Available Options
| Back Mount Instruction 119 and 4100 series REV02-2022.pdf | Download |
Building upon the successful 129 Series seats, Racetech offers the same ergonomic form and incredible feature set but in a lighter and more affordable package. Used by many professional teams at both national and international level and in a range of motorsport disciplines including circuit, rally, drift and drag racing. There are four sizes available (standard, wide, tall and wide-tall). Customise your seat further with low base cushions or add side cushions for support in the thigh area. The 119 series seats are compliant with FIA 8855-1999 standards *.
* To comply with FIA 8855-1999, the 119 series seats (except the RT4119HRW) must be back-mounted to the rollcage at shoulder level. Back-mounting can be achieved using parts RTB2115B and RTB2005C, see instructions here. Back-mounting improves seat strength and stability during an impact, increases driver 'feel' of the chassis, and reduces driver fatigue. See the explanation video here.
Dimensions and Weights:
[[SEAT-TABLE]]
Images may differ from the actual product; embroidery on the product received may differ slightly from that shown. Contact us if you have any questions.
| Application | |
| Common Applications | National to international-level circuit and rally |
| Stock Colour / Material | |
| Gelcoat | Gloss black |
| Seat Cover | Black fire-retardant fabric |
| Wear Patches | Black perforated leather |
| Technical | |
| Homologation | FIA 8855-1999 Approved |
| Shell Construction | Fibreglass Composite |
| Shell Weight | From 7.6kg |
| Side Mount Hole Centres | 295mm |
| Back Mount Hole Centres | 250mm |
| Bolt Torque (Zinc) | 30Nm / 22 ft lb |
| Design | |
| Sizes | HRW - Standard THR - Tall WHR - Wide WTHR - Wide & Tall |
| Head Restraint | Integrated head restraint |
| HANS Compatible | Yes |
| Harness Compatibility | Up to 6-point harness |
| Large Harness Guides | Yes |
| Air Ducting | Yes - vented to the driver's lower back |
| Back-mount Compatible | Yes |
